Datos técnicos

Bridas 150Lb Dimensiones | Bridas 300Lb Dimensiones | Bridas 600Lb Dimensiones | Bridas 900Lb Dimensiones | Bridas 1500Lb Dimensiones | Bridas 2500Lb Dimensiones | SOLDADURA NECK BRIDAS | DIN 2527 Bridas | DIN 2576 Bridas | DIN 2632 Bridas | DIN 2633 Bridas | DIN 2634 Bridas | DIN 2635 Bridas | DIN 2642 Bridas


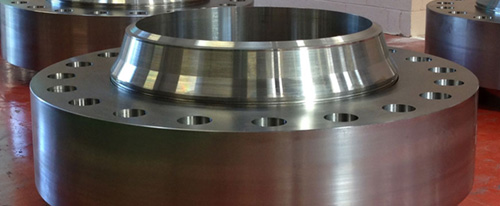

  • Normal
    pipe
    size    		 Outside
    dia. of
    Bridas    		 Minimum
    thickness
    of Bridas    		 Overall          Length Bolt
    Circle    		 No. and
    Size of
    Holes    		 O.D.
    of raised
    face
    Welding
    neck    		 Slip-on
    &
    socket
    welding    		 Lap
    Joint
    		O Q Y Diam. No. dia. R
    1/2 12.1 22.3 60.3 31.8 31.8 82.5 4 22 35
    3/4 130 25.4 69.8 34.9 34.9 89.0 4 22 43
    1 149 28.6 73.0 41.3 41.3 101.5 4 25 51
    1-1/4 159 28.6 73.0 41.3 41.3 111.0 4 25 64
    1-1/2 178 31.8 82.6 44.4 44.4 124.0 4 29 73
    2 216 38.1 101.6 57.2 57.2 165.0 8 25 92
    2-1/2 244 41.3 104.8 63.5 63.5 190.5 8 29 105
    3 267 47.7 117.5 73.0 73.0 203.0 8 32 127
    3-1/2
    4 311 54.0 123.8 90.5 90.5 241.5 8 35 157
    5 375 73.1 155.5 104.8 104.8 292.0 8 41 186
    6 394 82.6 171.4 119.1 119.1 317.5 12 38 216
    8 483 92.1 212.7 142.9 142.9 393.5 12 45 270
    10 584 108.0 254.0 158.8 177.8 482.5 12 51 324
    12 673 123.9 282.9 181.0 219.1 571.5 16 54 381
    14 749 133.4 298.4 ----- 241.3 635.0 16 60 413
    16 826 146.1 311.2 ----- 260.4 705.0 16 51 470
    18 914 162.0 327.0 ------ 276.2 474.5 16 73 538
    20 984 117.8 355.4 ----- 292.1 832.0 16 80 584
    24 1168 203.2 406.4 ----- 330.2 990.5 16 92 692
