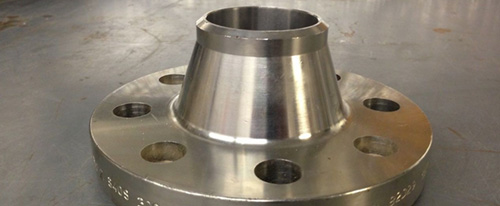

  • Normal
    pipe
    size    		 Outside
    dia. of
    Bridas    		 Minimum
    thickness
    of Bridas    		 Overall Length Bolt
    Circle    		 No. and
    Size of
    Holes    		 O.D. of
    raised
    face
    Welding
    neck    		 Slip-on
    & socket
    welding    		 Lap Joint
    O Q Y Diam. No. dia. R
    1/2 95 14.3 52.4 22.2 22.2 666.5 4 15 35
    3/4 117 15.9 57.2 25.4 25.4 82.4 4 19 43
    1 124 17.5 61.9 27.0 27.0 89.0 4 19 51
    1-1/4 133 19.1 65.1 27.0 27.0 98.5 4 19 64
    1-1/2 156 20.7 68.3 30.2 30.2 114.5 4 22 73
    2 165 22.3 69.8 33.3 33.3 127.0 8 19 92
    2-1/2 190 25.4 76.2 38.1 38.1 149.0 8 22 105
    3 210 28.6 79.4 42.9 42.9 168.0 8 22 127
    4 254 318 85.7 47.6 47.6 200.0 8 22 157
    5 279 35.0 98.4 50.8 50.8 235.0 8 22 186
    6 313 36.6 98.4 52.4 52.4 270.0 12 22 216
    6 381 413 111.1 61.9 91.9 330.0 12 25 270
    10 444 47.7 117.5 66.7 95.3 387.5 16 29 324
    12 521 50.8 130.2 73.0 101.6 451.0 16 32 381
    14 584 54.0 142.9 76.2 111.1 514.5 20 32 413
    16 648 57.2 146.0 82.6 120.7 571.5 20 35 470
    18 711 60.4 158.8 88.9 130.2 628.5 24 35 533
    20 775 63.5 161.9 95.2 139.7 686.0 24 35 584
    24 914 69.9 168.3 106.4 152.4 843.0 24 41 692
