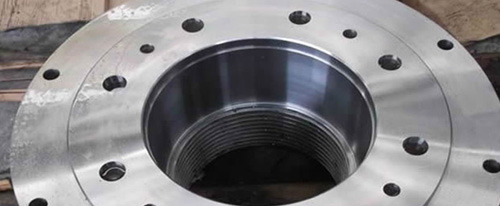

  • Normal
    pipe
    size    		 Outside
    dia. of
    Bridas    		 Minimum
    thickness of
    Bridas    		 Overall Length Bolt Circle No. and
    Size of
    Holes    		 O.D. of
    raised
    face
    Welding neck Slip-on
    & socket
    welding    		 Lap Joint
    		O Q Y Diam. No. dia. R
    1/2 95 14.3 52.4 22.2 22.2 66.5 4 15 35
    3/4 117 15.9 57.2 25.4 25.4 82.5 4 19 43
    1 124 17.5 61.9 27.0 27.0 89.0 4 19 51
    1-1/4 133 20.7 66.7 28.6 28.6 98.5 4 19 64
    1-1/2 156 22.3 69.8 31.8 31.8 114.5 4 22 73
    2 165 25.4 73.0 36.5 36.5 127.0 8 19 92
    2-1/2 190 28.6 79.4 41.3 41.3 149.0 8 22 105
    3 210 31.8 82.6 46.0 46.0 168.0 8 22 127
    3-1/2 229 35.0 85.7 49.2 49.2 184.0 8 25 140
    4 273 38.1 101.6 54.0 54.0 216.0 8 25 157
    5 330 44.5 114.3 60.3 60.3 266.5 8 29 186
    6 356 47.7 117.5 66.7 66.7 292.0 12 29 216
    8 419 55.6 133.4 76.2 76.2 349.0 12 32 270
    10 508 63.5 152.4 85.7 115.1 432.0 16 85 324
    12 559 66.7 155.6 92.1 111.1 489.0 20 35 381
    14 603 69.9 165.1 93.7 117.5 527.0 20 38 413
    16 686 76.2 177.8 106.4 127.0 603.0 20 41 470
    18 743 82.6 184.2 117.6 139.7 654.0 20 45 533
    20 813 88.9 190.5 127.0 165.1 724.0 24 45 584
    24 940 101.6 203.2 139.7 184.2 838.0 24 51 692
